Box Type Scroll Condensing Unit
Products Description
The condensing unit is equipped with famous brand electrical appliance,and refrigeration system components, it improves reliability of units.
Refrigerating circuit is designed independently, one compressor corresponds to one refrigerating circuit, there is no influence each other.
Adopting air cooling design,no additional cooling tower andcooling water pump is required it is easy to install.

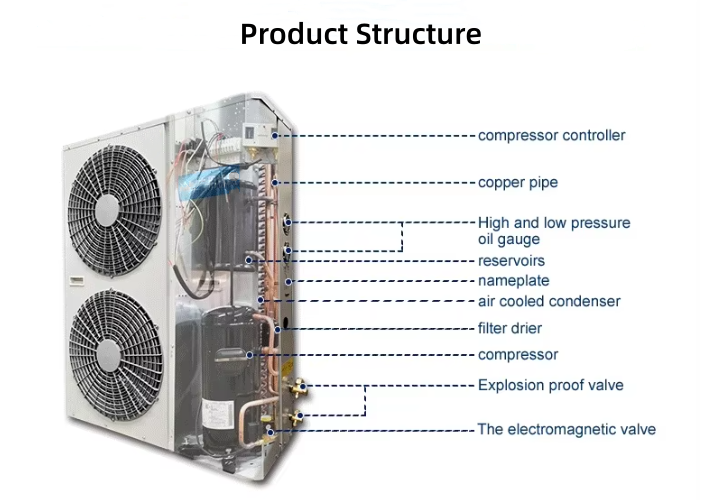

Core Component
Liquid storage tanks / Filters /Ressure Gauges / Pressure Controllers / Solenoid Valves / Hydrophilic Aluminium Foil Cndensers
/Copper Tubes With Internal Threads.
Feature
The shell adopts high anti-corrosion spraying layer.
Intelligent control of condensing fan start and stop.
Multiple protections to ensure safe system operation.
Adopting high efficiency motor,low noise and high airflow
The fins are made of hydrophilic aluminium foil and are corrosion-resistant after rigorous salt spray testing.
Provide the best quality and cost-effective refrigeration equipment for small cold storage room.
Advantage:
1.Original and handsome shape, light and reasonable structure,convenient installation.
2.Use original brand compressor,strong cold wind force, superior reliability, long service life.
3. Installation without restriction by field, small occupation area, tight structure, convenient for package and transportation.
4. Use efficient, low power, low noise and strong-wind axial fan motor.
5. Efficient heat transfer surface,low noise when operating.
6. Simple structure, accurate and reliable operating system.
7. Integral installation, anticollision, rainproof structure feature.
8. High efficiency and energy saving design.
9. Full automatic control, easy to operation and management.
| Suitable Temperature for Various Products | ||
| Temperature | Condensing Unit Type | Suitable Products |
| -5°C ~ +5°C | Single stage piston/scroll/screw compressor condensing unit | Vegetables, Fruit, Drink, Beer, Medicines, Vaccine... |
| -15°C ~ -25°C | Single stage piston/scroll/screw compressor condensing unit | Meat, Fish, Medicines, Seafood, Ice Cream... |
| -30°C ~ -40°C | 2-stage compressor condensing unit | Meat, Fish, Blood... |
| -45°C ~ -70°C | Cascade condensing unit | Tuna,Vaccine |
Application
Cold Room,Food&Beverage Factory,Hotels,Building Material Shops,Garment Shops,Machinery Repair Shops,
Manufacturing Plant,Farms,Restaurant,Retail,Food Shop,Printing Shops, Construction Works,Advertising Company,
Beverage Factory,Supermarkets.

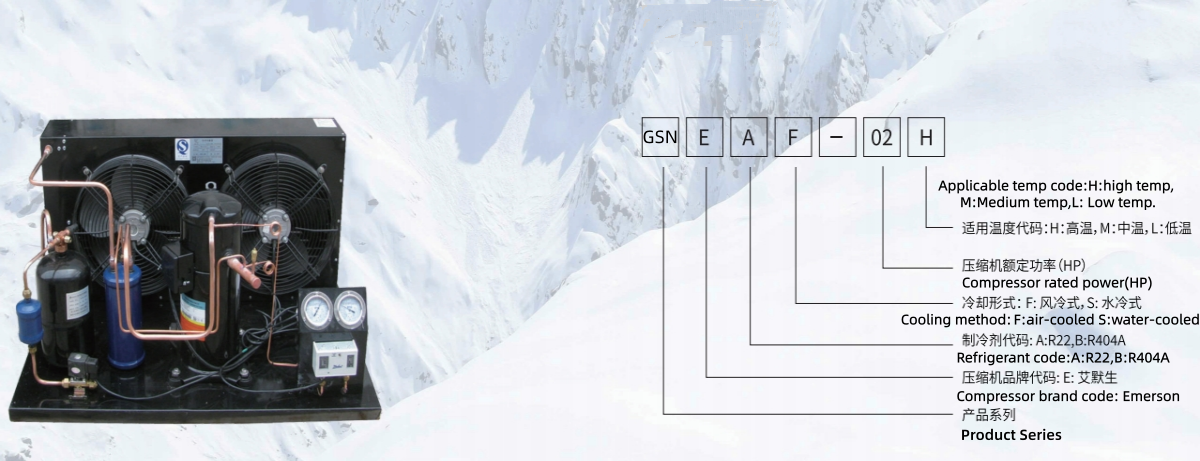

How to get the suitable compressor model number?
1. Refrigerant Type
2. Cooling Capacity
3. Cold Room Temp
4. Power Supply .
FAQ
Q1.Why we can choose you?
We can provide you with quick response service, quality products, shorter lead time, more competitive price and flexible payment term.
Q2.How is quality ensured?
We have established a strict quality control rules based on ISO quality management system,
the third party inspection is accepted and also an original report is available to customer directly.
Q3.Can I get an OEM order?Normally by sea, railway or land shipment,
if only a sample required, air or courier delivery is available, however the incurred charges should be borne by customer.
Q4.Which payment terms can you accept?
T/T, L/C, or Western union is available.
